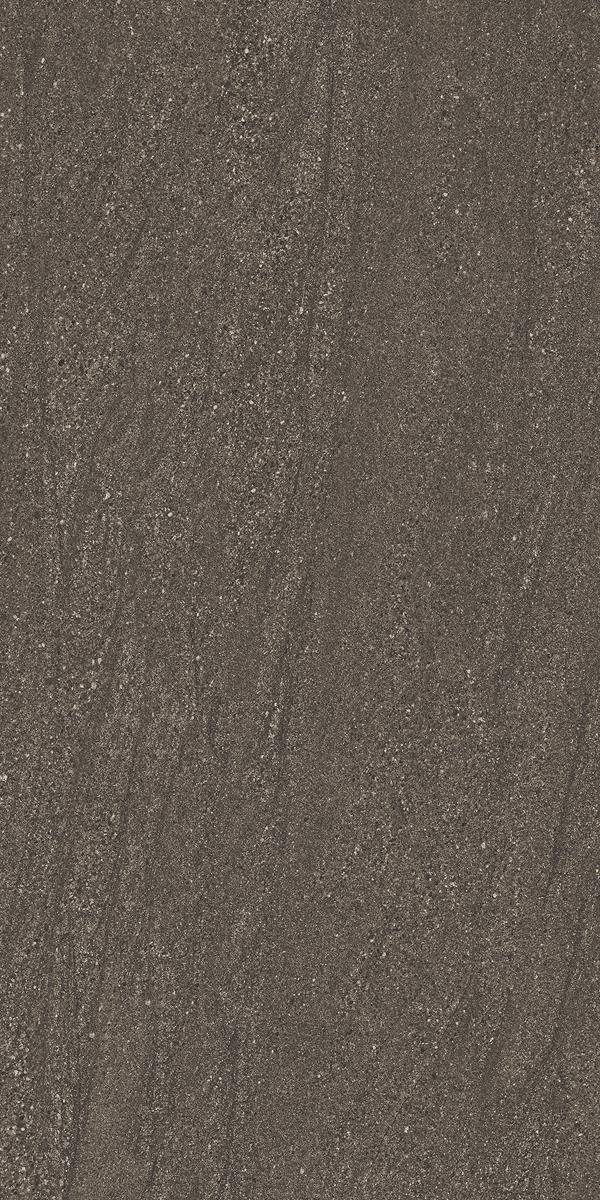

sonosand nero
sonosand nero
- gres porcelain
- 60x120 CM
- 1
- matt
- 2
- 1.44 sqm / 15.50 sqft
Technical Details
| TEST DISCRIPTION | |||
|---|---|---|---|
| CHARACTERISTIC | TEST METHOD | STANDARD AS PER ISO-13006/EN14411 GROUP | VALUE |
| Deviation in length | IS-13630-1 | ±0.50 % | ±0.10 % |
| Deviation in width | IS-13630-1 | ±0.50 % | ±0.10 % |
| Deviation in thickness | IS-13630-1 | ±5.00 % | ±5.00 % |
| Straightness in sides | IS-13630-1 | ±0.50 % | ±0.10 % |
| Rectangularity | IS-13630-1 | ±0.60 % | ±0.15 % |
| Surface flatness | IS-13630-1 | ±0.50 % | ±0.20 % |
| Surface Quality | IS-13630-1 | Min. 95% | Min. 95% |
| PHYSICAL PROPERTIES | |||
| Water absorption | IS-13630-2 | ≤0.50% | ≤0.50% |
| Modulus of rupture | IS-13630-6 | Min. 35 N/mm² | Min. 37 N/mm² |
| Breaking Strength(N) | IS-13630-6 |
<7.5mm-700N ≤7.5mm-1300N |
<7.5mm-1000N ≤7.5mm-1400N |
| Moisture Expansion(mrn/m) | IS-13630-3 | 0.06 Max | 0.01 Max |
| Scratch Hardness of Surface | IS-13630-13 | Min. 4 | Min. 4 |
| Resistance of Surface Abrasion(Glazed Tiles) | IS-13630-11 | As per mfg. | Class Min. |
| CO-Efficent Of Linear Thermal Expansion | IS-13630-4 | As per mfg. | 6.5x10-0.6 Max. |
| Thermal Shock Resistance | IS-13630-5 | 10 Cycles Min. | 10 Cycles Min. |
| Crazin Resistance | IS-13630-9 | As per mfg. | 5 cycles at 7.58ar Pressure |
| Impact Resistance-Coefficent of Restitution | IS-13630-14 | As per mfg. | 0.55 Min |
| Frost Resistance | IS-13630-14 | As per mfg. | No Damage |
| Bulk Density (g/cc) | IS-13630-2 | >2.0 gm/cc | >2.0 gm/cc |
| CHEMICAL PROPERTIES | |||
| Resistance ot Staining | IS-13630-8 | Class I Min. | Class II |
| Resistance of Household Chemicals | IS-13630-8 | Class AA Min. | Class AA |
| Resistance to Acids & Alkalis | IS-13630-8 | As per mfg. | Min. Class A |
| Slip Resistance | 150-13006/EN 1444 Group B|A | As per mfg. | As per mfg. |
